8L Ozone Aging Environmental Testing Machine 1 Phase Rustproof

Name: 8L Ozone Aging Environmental Testing Machine 1 Phase Rustproof
Brand: lixian
Price: 1 USD

Quality 8L Ozone Aging Environmental Testing Machine 1 Phase Rustproof for sale

Brand Name : lixian

Model Number : HZ-2008

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7 days

Packaging Details : wood

Price : negotiate

Supply Ability : negotiate

certification : CE/ASTM/ISO

Temprature range : From 50 °C to 75 °C

Testing room Capacity : 137 * 53 * 136cm

Material : Stainless steel

Application : Industry

Dimensions : Customer Required

Service : OEM\ODM

Standard : GB ASTM AISI DIN BS,DIN,ASTM,ISO

Contact Now

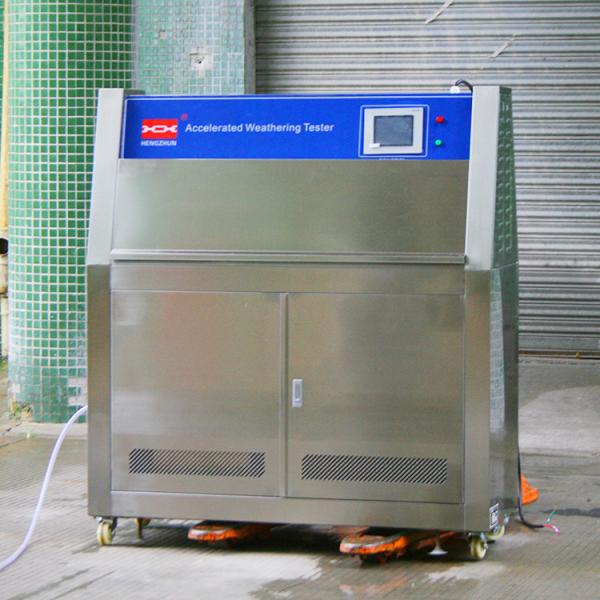

Distilled Water 8 Liters Day Uv Test Chamber UV Weather Equipment HZ-2008

Uv Accelerated Weathering Aging Test Chamber can simulate the ultraviolet ray in the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect ultraviolet ray of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating.

Uv Accelerated Weathering Aging Test Chamber

Main Functions
The materials are tested for several days or weeks, you can know the damage types include: bleaching, discoloration,
loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Corresponding Standard
Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE

Technical Parameter:

Model	HZ-2008 UV aging test chamber
Lamps Quantity	UV Lamp 8pcs, spare lamp: 4pcs, (ATLAS, UVA340, UVB313, UVC351)
Recorder	Option
Radiometer	Option
UV Temperature	From 45 °C to 70 °C
Black temperature	From 40 °C to 60 °C
Testing Capacity and sample size	48 piece (75 x 150mm) / 50 piece (75 x 150mm)
Water and Consumption	Distilled water, 8 liters / day
Dimension (W x D x H)	137 x 53 x 136cm
Weight	136kg
Power	1 ψ, 120V/60Hz, 16A or 230V/50Hz, 9A, 1800W (max)

1. Simulated Sunlight
The damage of material durability is mainly caused by the sun's ultraviolet ray, it produces very little visible or infrared spectral energy. We can choose according to different testing requirements of different wavelengths of UV ultraviolet light, because each lamp in the total energy and wavelength of UV radiation are not the same. Usually, UV lamp can be divided into two kinds of UVA and UVB.
2. UV Lamp Type
UVA-340 lamp: UVA-340 lamps can simulate short-wave UV light in the sunlight excellently, ie sunlight from 365nm to 295nm cutoff wavelength.
UVB-313 lamps: UVB-313 lamps are usually issued by short-wave UV radiation than the Earth's surface in the strong solar ultraviolet radiation, which can speed up the greatest degree of material aging.
UVA-351 lamp: Simulation of UV sunlight through windows, it is the aging of indoor materials for testing the most effective.
3. Temperature Control:
The temperature control in each cycle, the temperature can be controlled at a set value. At the same time the board can monitor the temperature of the thermometer. Higher temperature can accelerate the aging process, while temperature control for reproducibility of the test is also very important.
4. Water Spray System:
Sprinkler system with 12 nozzles, each side in the test room of 6; sprinkler system can run a few minutes and then shut down.This short cooling water samples quickly and create a thermal shock conditions.

8L Ozone Aging Environmental Testing Machine 1 Phase Rustproof
